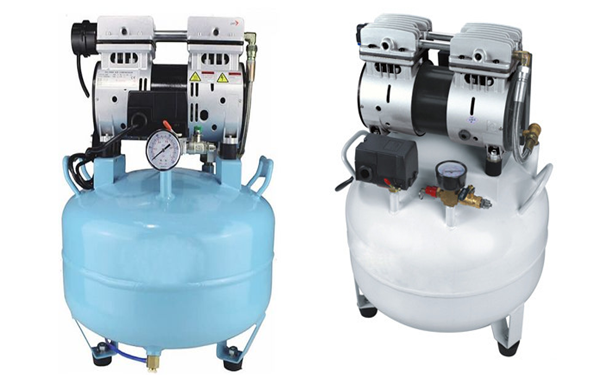

Specifications

• Power: 1100W [1.5HP]
• Air Flow: 230L/M [8.05CFM]
• Noise Level: 53dB(A)
• Max. Pressure: 8Bar [0.8Mpa]
• Air Tank: 60L [13.2Gallon]
• Gross/Net Weight: 65/49KG [143/107.8Pound]
• Package Dimension:800*500*865mm 263*194.7*285.45inch]
• Air Dryer
• Silent Cabinet

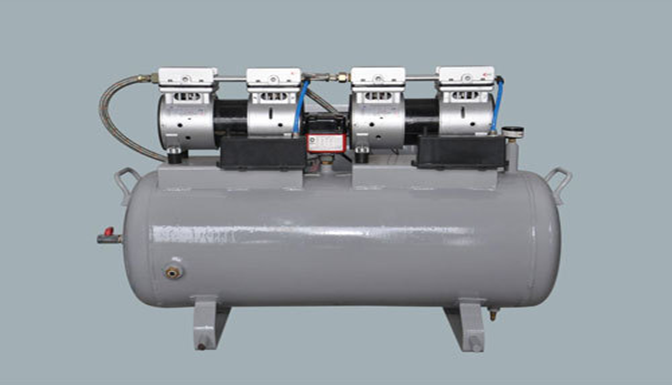

Specifications

• Power: 1HPX2 (750Wx2)
• Voltage: 110V/220V
• Air Displacement @4BAR: 160L/min
• Speed: 1400rpm
• Noise: 57dB(A)/40”
• Tank: 60L (the color is optiona)
• Pressure: 116psi

Options

Air Dryer
Silent Cabinet

Package

Wooden case
Weight 60kg
Dimension: 92x70x96cm

• High quality air compressor pump, with pure copper coil
• Tank inside has done anti-rust and antibacterial coated treatment
• Longer service life: 7-8 years lifespan
• Working noise is 5-10 dB less than normal oil free compressor supplier
• Easy operation, no more maintenance fee
• Meticulous workmanship
• Low vibration: rubber feet limit its vibration to a lower level
• Fashionable design and durable material
• Low energy consumption air compressor
• High precision filtration.

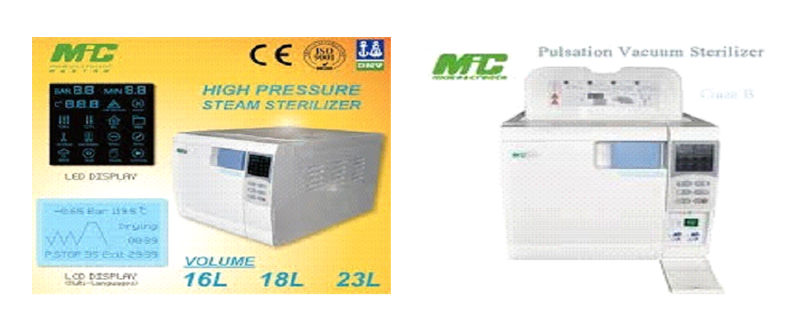

Fearures

Standard Class B with three times vacuum and drying, the remaining temperature of sterilized instrument is less than 0.2%.
The vacuum data can reach -0.8bar, it fits various instrument, including package unpackaged solid hollow multi-apertures and inset pipes. It makes sure the instrument can be sterilized completely.
Fuzzily computer controlled, digital bright show. The interface is modularized panel for easy operation.
It is installed with BOWIE&DICK which measures the penetration of water steam.
It has vacuum text which can make sure the ability of texting vacuuming.
Sterilization cycle self-comment.
Fast and independent steam generator.
Large capacity instrument tray made of SS. SU304.
Safety lock and triple temperature.overload protecting
Auto/Manual water adding
Inset cleaning device
Special function of creating medicine cotton and sterilizing rubber items
Handsome aspect and good quality
Cristal LCD display
5-Button panel with the LCD display, so convenient.
Warning message, Error is made easier to judge.

Other Information (DO's & Dont's)

Please place the sterilization on a plane place , which could adjust the height by adjusting foot pad
Please adopt distilled water to extend the service life
Don't block the heat removal system on the surface of sterilization
Please put the instruments on the tray not touching one another allowing space for steam to pass through
Please empty the used water tank frequently. Usually it need empty when the clean water in the reservoir is empty.
Please ensure the door handle is closed tightly
Never try to open the chamber door if and when the pressure display doesn't show "0.0"
Please cut off the power and cool down the auto clave before maintenance
Don't drag the machine while moving
Power connection must be grounded properly
Must be provided enough power. (23L:2300VA/18L:1800VA)
While the outside temperature is too low, please pre-heating the machine without instruments for 30 minutes before sterilize
Don't cut off the power to stop the machine directly. If you need stop the machine directly, please press the "START/STOP" button for 3 seconds.

Technical Specification:

Model	S-23BCE
Volume	23
Cavity size diameter*	L250x450mm
Depth DimensionL*W*H (mm)	616*460*420
Electrical Requirements	220V 50Hz
Power Consumption	1900W

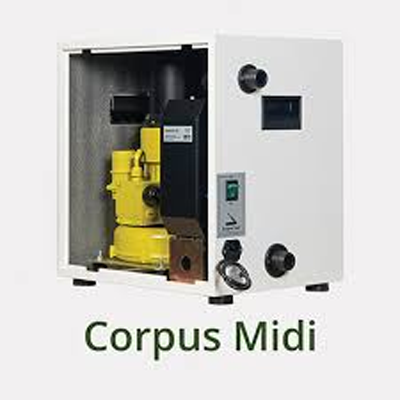

• Corpus Midi is the compact, handsome member of Corpus Vacuum system and equipment.
• The unit is designed to serve one or two surgery by strong vacuum power.
• Midi is manufactared under Corpus Vacuum’s quality control and in accordance with CE standart.
• The compact body of surgical device has dimensions are d:31, h:43, w:40 cm. itís more ergonomic to locate as close as possible to the dental unit and to the left side of the dental chair.
• Its cabinet is designed for maximum ergonomy and minimum acustic and noise level.
• The cabinet is produced for maksimum air circulation against heating by the vacuum motor.
• Cabinet surface is painted electrostatic epoxy and has smooth, bright and hygenic surface. Also the other partsare galvanized for corsion free. The standart color is RAL 9016 white.
• Corpus Vac MIDI has a non - stop air ring vacuum motor as all Corpus member. The motor’s power is 0.450 kW/60 Hz, 0,370 kW /50 Hz and it can transfer 1300 liters air per minute. It can work continously 8-10 hours.
• All system (air/secration separator with electronic level control and automatic auxiliary draining pump is
• controlled by high- tech electronic board.
• The system is protected against electro-shock.
• Midi surgical aspirator (Midi high vacuum system) has anti vibration system and silencer for the exhauster airand non stop suction motorís noise.
• The exhaust prevent the contamination of dirty air.
• Corpus Midi has new model coarse filter (OPTIONAL) for to hold big particulles and inlay and onlay. The filter’s
• installation, maintenance and cleaning are very easy and quickly. Also the filter can be installe to be 90 or 180 degrees.

Physical Characteristics

Instrument

Weight	Approx. 1.1 kg excluding optional configurations
X ray tube	CNT Field emission type
Mode of Operation	Spot
Anode angle	12.5°
Focal spot	0.4mm
Exposure time set	0.01~0.5 set digital
Total filtration	2mm Al
SSD	110mm
Classification	Class IIb

Alarms

Categories	System Status
Priorities	Low, Medium and High Priorities
Notification	Audible and Visual
Setting	Default and Individual
Alerts	Audible/Visual alerts confirm normal conditions

Electrical

Instrument

Power Requirements	DC Mains 20 to 25V~, 50/60 Hz, 00 VA
AC output	24V AC

Generator

Output power	210W(p-p)
Exposure time range	0.01~4.00sec (in 0.01sec increments)
Maximum duty cycle	1:10 (The range is flexible upon users selection)

Battery

Type	Li-polymer
Battery charger	AC110V ~ 250V
Voltage	24V 1000mA
Consecutive	400 copies

Tube

Tube specification

Nominal tube voltage	70kv
Nominal focal spot	0.4mm
Maximum current continuous service	3mA x 70kv
Target material	Tungsten(W)
Minimum target angle	12.5 degree
Minimum permanent filtration
X ray source assembly	Carbon Nano Tube based on the field emission X-ray tube
