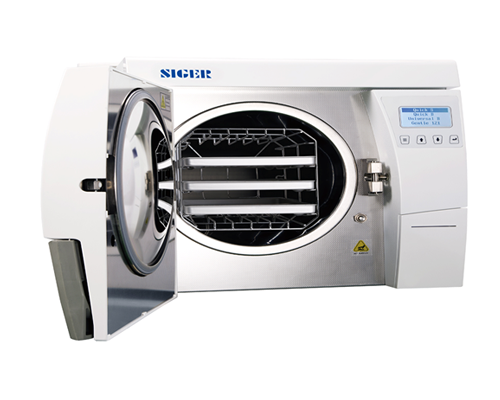

SIGER STEAM STERILISER (EGO series) EGO 23B

Sterilization Cycle With High Performance And Reliability

• European Class B standard model, with 3-stage pre-vacuum process

• HAFC system (Hot Air Forced Circulation) improves the dry efficiency significantly;
• Unique air-water separating system enhances system efficiency and reliability;
• High-speed process-controller and the special hydraulic circuit allows the autoclave to perform a Quick Class-B cycle in only 20 minutes;
• Unique steam diffusing solution ensures an evenly heating up inside the sterilization chamber;
• Original POST-DRY program delivers extra-dry and cool instruments even without opening the door;
• THT process validation system monitors the temperature and pressure in real time, thus ensures the validity of the sterilization;
• Auto-start Cycle enables the doctor to start a cycle at any specific date/time;
• 5 sterilization cycles available: Universal B, Quick B, Quick S, Gentle B and Prion;
• 4 test programs onboard: B&D test, Helix test, Vacuum test and Water Quality test;
• Universal RS485 serial port allows the user either to connect the autoclave to a label printer, or to a PC to monitor and test the validation of the sterilization cycles

Excellent Traceability

• Onboard printer automatically prints the sterilization data and result at the end of each cycle;
• Universal USB port and memory stick allows the user to store and download over 100,000 cycle data record;

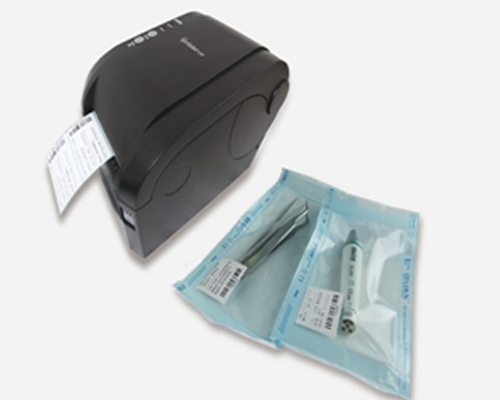

• Barcode label printer (optional) ensures the identification and traceability of every single sterilization pack;

5L built-in clean water tank

• 5L built-in clean water tank allows the user to perform 10 sterilization cycles;
• Built-in water sensor delivers notices whenever the water quality exceeds the limit; autoclave won’t start until the user discharge the tank and refill it with water of good quality.
• Built-in float switch delivers notices whenever the water is less than the minimum level.

Color touch screen

• Color touch screen with excellent sensitivity;
• Showing the data of the sterilization,cycle progress and errors in real time.

Optional Waste Water Discharge Solution

• Automatic: connect the pipe to the outlet at the back,waste water will be discharged automatically.
• Manual: connect the pipe to the outlet in the front panel to discharge the waste water manually when the warning message pops up on the display.

EGO 17B+ is our servo-assisted electric door model,easy and extra-safe

Effective security protection

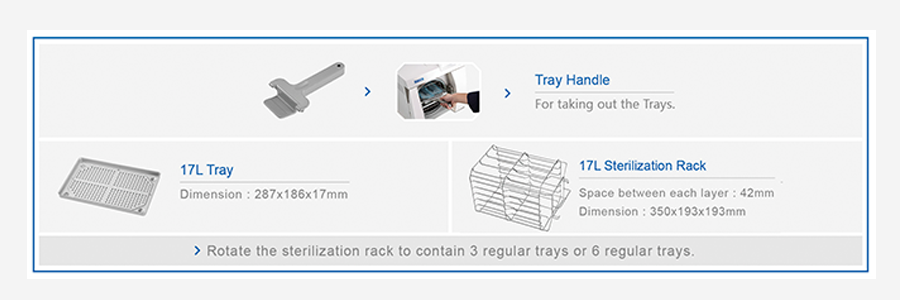

Rotate the sterilization rack 90º to contain 6 regular trays or 3 regular trays with wider space in between

image-foo.pngSIGER STEAM STERILISER (EGO series) EGO 17B

Sterilization Cycle With High Performance And Reliability

• European Class B standard model, with 3-stage pre-vacuum process

• HAFC system (Hot Air Forced Circulation) improves the dry efficiency significantly;
• Unique air-water separating system enhances system efficiency and reliability;
• High-speed process-controller and the special hydraulic circuit allows the autoclave to perform a Quick Class-B cycle in only 20 minutes;
• Unique steam diffusing solution ensures an evenly heating up inside the sterilization chamber;
• Original POST-DRY program delivers extra-dry and cool instruments even without opening the door;
• THT process validation system monitors the temperature and pressure in real time, thus ensures the validity of the sterilization;
• Auto-start Cycle enables the doctor to start a cycle at any specific date/time;
• 5 sterilization cycles available: Universal B, Quick B, Quick S, Gentle B and Prion;
• 4 test programs onboard: B&D test, Helix test, Vacuum test and Water Quality test;
• Universal RS485 serial port allows the user either to connect the autoclave to a label printer, or to a PC to monitor and test the validation of the sterilization cycles

Excellent Traceability

• Onboard printer automatically prints the sterilization data and result at the end of each cycle;
• Universal USB port and memory stick allows the user to store and download over 100,000 cycle data record;
• Barcode label printer (optional) ensures the identification and traceability of every single sterilization pack;

5L built-in clean water tank

• 5L built-in clean water tank allows the user to perform 10 sterilization cycles;
• Built-in water sensor delivers notices whenever the water quality exceeds the limit; autoclave won’t start until the user discharge the tank and refill it with water of good quality.
• Built-in float switch delivers notices whenever the water is less than the minimum level.

Color touch screen

• Color touch screen with excellent sensitivity;
• Showing the data of the sterilization,cycle progress and errors in real time.

Optional Waste Water Discharge Solution

• Automatic: connect the pipe to the outlet at the back,waste water will be discharged automatically.
• Manual: connect the pipe to the outlet in the front panel to discharge the waste water manually when the warning message pops up on the display.

EGO 17B+ is our servo-assisted electric door model,easy and extra-safe

Effective security protection

Rotate the sterilization rack 90º to contain 6 regular trays or 3 regular trays with wider space in between

SIGER STEAM STERILISER (EGO series) EGO 23B

Sterilization Cycle With High Performance And Reliability

• European Class B standard model, with 3-stage pre-vacuum process.

• HAFC system (Hot Air Forced Circulation) improves the dry efficiency significantly;
• Unique air-water separating system enhances system efficiency and reliability;
• High-speed process-controller and the special hydraulic circuit allows the autoclave to perform a Quick Class-B cycle in only 20 minutes;
• Unique steam diffusing solution ensures an evenly heating up inside the sterilization chamber;
• Original POST-DRY program delivers extra-dry and cool instruments even without opening the door;
• THT process validation system monitors the temperature and pressure in real time, thus ensures the validity of the sterilization;s
• Auto-start Cycle enables the doctor to start a cycle at any specific date/time;
• 5 sterilization cycles available: Universal B, Quick B, Quick S, Gentle B and Prion;
• 4 test programs onboard: B&D test, Helix test, Vacuum test and Water Quality test;
• Universal RS485 serial port allows the user either to connect the autoclave to a label printer, or to a PC to monitor and test the validation of the sterilization cycles.

Excellent Traceability

• Onboard printer automatically prints the sterilization data and result at the end of each cycle;
• Universal USB port and memory stick allows the user to store and download over 100,000 cycle data record;
• Barcode label printer (optional) ensures the identification and traceability of every single sterilization pack;

5L built-in clean water tank

• 5L built-in clean water tank allows the user to perform 10 sterilization cycles;
• Built-in water sensor delivers notices whenever the water quality exceeds the limit; autoclave won’t start until the user discharge the tank and refill it with water of good quality.
• Built-in float switch delivers notices whenever the water is less than the minimum level.

Color touch screen

• Color touch screen with excellent sensitivity;
• Showing the data of the sterilization,cycle progress and errors in real time.

Optional Waste Water Discharge Solution

• Automatic: connect the pipe to the outlet at the back,waste water will be discharged automatically.
• Manual: connect the pipe to the outlet in the front panel to discharge the waste water manually when the warning message pops up on the display

Effective security protection

Rotate the sterilization rack 90º to contain 6 regular trays or 3 regular trays with wider space in between.

SIGER STEAM STERILIZER (EGO Series) EGO 23B+

Sterilization Cycle With High Performance And Reliability

• European Class B standard model, with 3-stage pre-vacuum process.

• HAFC system (Hot Air Forced Circulation) improves the dry efficiency significantly;
• Unique air-water separating system enhances system efficiency and reliability;
• High-speed process-controller and the special hydraulic circuit allows the autoclave to perform a Quick Class-B cycle in only 20 minutes;
• Unique steam diffusing solution ensures an evenly heating up inside the sterilization chamber;
• Original POST-DRY program delivers extra-dry and cool instruments even without opening the door;
• THT process validation system monitors the temperature and pressure in real time, thus ensures the validity of the sterilization;s
• Auto-start Cycle enables the doctor to start a cycle at any specific date/time;
• 5 sterilization cycles available: Universal B, Quick B, Quick S, Gentle B and Prion;
• 4 test programs onboard: B&D test, Helix test, Vacuum test and Water Quality test;
• Universal RS485 serial port allows the user either to connect the autoclave to a label printer, or to a PC to monitor and test the validation of the sterilization cycles.

Excellent Traceability

• Onboard printer automatically prints the sterilization data and result at the end of each cycle;
• Universal USB port and memory stick allows the user to store and download over 100,000 cycle data record;
• Barcode label printer (optional) ensures the identification and traceability of every single sterilization pack;

5L built-in clean water tank

• 5L built-in clean water tank allows the user to perform 10 sterilization cycles;
• Built-in water sensor delivers notices whenever the water quality exceeds the limit; autoclave won’t start until the user discharge the tank and refill it with water of good quality.
• Built-in float switch delivers notices whenever the water is less than the minimum level.

Color touch screen

• Color touch screen with excellent sensitivity;
• Showing the data of the sterilization,cycle progress and errors in real time.

SIGER STEAM STERILIZER (EGO Series) EGO 23B+

Effective security protection.

Rotate the sterilization rack 90º to contain 6 regular trays or 3 regular trays with wider space in between.

SIGER STERILISER (AMI series) AMI 23B

STEAM STERILIZER

• European Class B standard model, with 3-stage pre-vacuum process.
• A unique vacuum pump with cooling system can improve the performance of vacuum.
• Unique air-water separating system enhances system efficiency and reliability.
• Unique steam diffusing solution ensures an evenly heating up inside the sterilization chamber.

Excellent Traceability

• Large capacity data logger : Standard large capacity USB disk can store more than 1 million sterilization records.
• Optional built-in printer： Optional built-in printer automatically prints sterilization data and results after each sterilization process.

Color touch screen with excellent sensitivity

• It is simple to select the sterilization cycle through the intuitive graphical button.

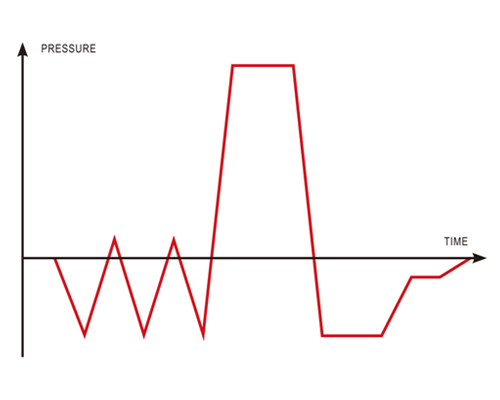

• It is easy to read the pressure curve in real time during the cycle from the high-brightness LED digital display.

Hygienic and practical water tank design

• 5L built-in clean water tank allows the user to perform 10 sterilization cycles.
• Separating clean water tank from used water tank can avoid water contamination.
• A fully open distilled water tank is inspectable and easy for cleaning and disinfection.

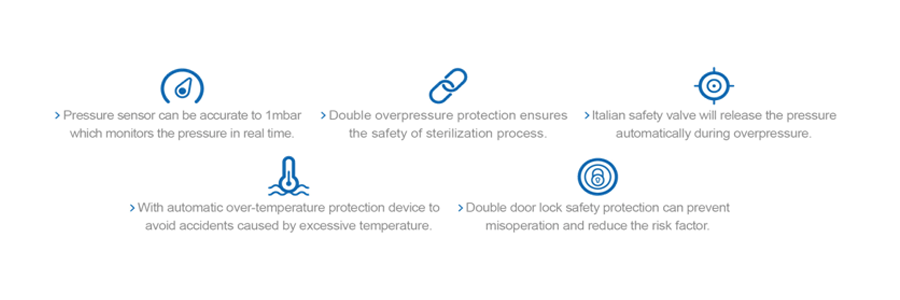

Effective security protection

• Pressure sensor can be accurate to 1mbar which monitors the pressure in real time.
• Double overpressure protection ensures the safety of sterilization process.
• The safety valve will release the pressure automatically during overpressure.
• With automatic over-temperature protection device to avoid accidents caused by excessive temperature.
• Double door lock safety protection can prevent misoperation and reduce the risk factor.

Easy door adjustments

• The adjustment of the door-tightness can be easily performed in 5 seconds.

Effective security protection.

Accessoriess

SIGER STERILISER (AMI series) AMI 23B

STEAM STERILIZER

• European Class B standard model, with 3-stage pre-vacuum process.
• A unique vacuum pump with cooling system can improve the performance of vacuum.
• Unique air-water separating system enhances system efficiency and reliability.
• Unique steam diffusing solution ensures an evenly heating up inside the sterilization chamber.

Excellent Traceability

• Large capacity data logger : Standard large capacity USB disk can store more than 1 million sterilization records.
• Optional built-in printer： Optional built-in printer automatically prints sterilization data and results after each sterilization process.

Color touch screen with excellent sensitivity

• It is simple to select the sterilization cycle through the intuitive graphical button.
• It is easy to read the pressure curve in real time during the cycle from the high-brightness LED digital display.

Hygienic and practical water tank design

• 5L built-in clean water tank allows the user to perform 10 sterilization cycles.
• Separating clean water tank from used water tank can avoid water contamination.
• A fully open distilled water tank is inspectable and easy for cleaning and disinfection.

Effective security protection

• Pressure sensor can be accurate to 1mbar which monitors the pressure in real time.
• Double overpressure protection ensures the safety of sterilization process.
• The safety valve will release the pressure automatically during overpressure.
• With automatic over-temperature protection device to avoid accidents caused by excessive temperature.
• Double door lock safety protection can prevent misoperation and reduce the risk factor.

Easy door adjustments

• The adjustment of the door-tightness can be easily performed in 5 seconds.

Effective security protection.

Accessoriess
